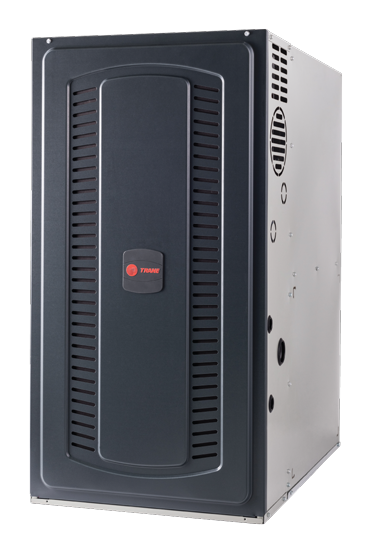

American Standard S Series S8X1C080M5PSCA 5T 80 AFUE Non-Condensing Single Stage Gas Furnace
American Standard S Series S8X1C080M5PSCA 5T 80 AFUE Non-Condensing Single Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385432
MPN: S8X1C080M5PSCA
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 80 % |
| Configuration | : | Multi - Position |
| Energy Star Compliant | : | No |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| Input BTU Rating | : | 80,000 Btu/hr |
| Model Number | : | S8X1 |
| Model | : | S8X1 |
| Motor Type | : | PSC |
| Number of Stages | : | Single |
| Phase | : | 1 ph |
| Series | : | S Series |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 115/120 V |
| Width | : | 21.0 in |
American Standard S Series - S8X1C080M5PSCA, 5T, 80% AFUE, 80,000 BTU, 120V, PSC Fan Motor, Mutli-Position, Non-Condensing Single Stage Gas Furnace
- Efficient airflow design reduces electrical energy use
- 34 inch tall- Lighter, easier to move and fit into tight spaces like short basements or tight closets Works great with larger, high-efficiency coils
- Improved airflow efficiency,Single piece belly band/ motor arm assembly
- Rain shield over IFC keeps condensate off the control
- Four–Way Multi-Poise
- At least 400 CFM/ton at 0.5 in. H20 external static pressure
