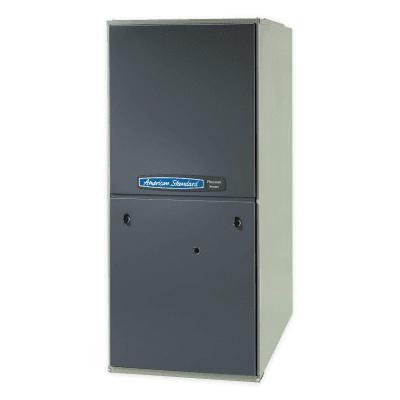

American Standard® Platinum Series Platinum 95 AUHMC100CCV4VA Gas Furnace, 115 V, 1600 cfm, 3/4 hp, 96 % AFUE
American Standard® Platinum Series Platinum 95 AUHMC100CCV4VA Gas Furnace, 115 V, 1600 cfm, 3/4 hp, 96 % AFUE
| AFUE Rating | : | 96 % |
| Additional Information | : | Aluminized Steel Heat Exchanger, Modulating Stage, Direct Drive Blower, Centrifugal Combustion Fan, Silicon Nitride Ignition Element |
| Amperage Rating | : | 11.2 A |
| Blower Size | : | 10 in Dia x 10 in W in |
| CFM Rating | : | 1600 cfm |
| Cabinet Dimensions | : | 40 in H x 21 in W x 28 in D in |
| Configuration | : | Upflow, Horizontal |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | LP Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 3/4 hp |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 100,000 Btu/hr |
| Model Number | : | AUHM |
| Model | : | Platinum 95 |
| Motor Type | : | Variable |
| Output BTU Rating | : | 38,000 Btu/hr |
| Phase | : | 1 ph |
| Rotational Speed | : | 5000 rpm |
| Series | : | Platinum |
| Tonnage | : | 4.0 Ton |
| Vent Size | : | 2-1/2 in |
| Vent, Ducted or Ductless | : | Vented |
| Voltage Rating | : | 115/120 V |
| Width | : | 21.0 in |
With AccuLink™ communicating capability, continuous Comfort-R™ mode and an array of other innovative features, the Platinum 95 gives your home maximum efficiency with controlled comfort.
American Standard® Gas Furnace, Series: Platinum Series, Model: Platinum 95, 100000 Btu/hr Input BTU Rating, 38000 Btu/hr Output BTU Rating, 115 V, 11.2 A, 1600 cfm CFM Rating, 3/4 hp HP Rating, 96 % AFUE, 1 ph, 60 Hz, Horizontal Left, Upflow Configuration, LP Gas, Natural Gas, 10 in Dia x 10 in W Blower Size, 40 in H x 21 in W x 28 in D Cabinet Dimensions, Variable Speed Blower Motor, 5000 rpm Rotational Speed, Vented Vent, Ducted or Ductless, 2-1/2 in Vent Size, 15 A Fuse, 4 ton Tonnage, Hot Surface Ignition System, Additional Information: Aluminized Steel Heat Exchanger, Modulating Stage, Direct Drive Blower, Centrifugal Combustion Fan, Silicon Nitride Ignition Element
- Converts up to 97.3 percent of the fuel you pay for into heat for your home
- Automatically communicates and coordinates with your other system components via the AccuLink™ Communicating System
- Faster, easier installation that is less invasive to your home with a simplified connection to the Comfort Control
- Saves on energy usage while reducing greenhouse gas emissions by significantly surpassing government efficiency standards on energy usage while reducing
- Runs quietly and evenly distributes warm air to every room with its variable-speed fan motor
- In the summer, Comfort-R™ helps keep your home cooler by reducing indoor humidity
- Its heavy steel insulated cabinet is durable, quiet and holds more heat in the furnace to better warm your home
