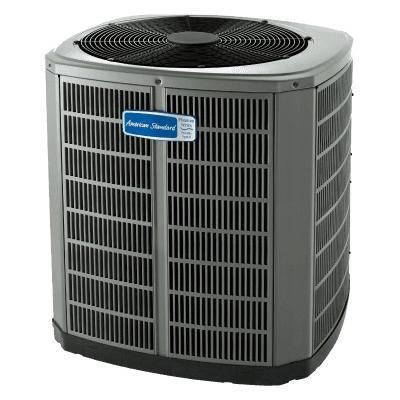

American Standard 5A6V8X36A1000A,Platinum 18, 3T, 18 SEER2, Variable Speed Heat Pump
American Standard 5A6V8X36A1000A,Platinum 18, 3T, 18 SEER2, Variable Speed Heat Pump
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385276
MPN: 5A6V8X36A1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Amperage Rating | : | 27 A |
| BTU Cooling Rating | : | 36,000 Btu/hr |
| Compressor Stages | : | Variable Speed |
| Dimensions | : | 46 in H x 30 in W x 33 in D |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HSPF2 Range | : | 8.1 |
| Liquid Line (OD) | : | 5/16 in |
| Max Fuse | : | 40 A |
| Model | : | 5A6V |
| Number of Stages | : | Variable Speed |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 18 |
| SEER2 Range | : | 8.1 |
| Series | : | Platinum 18 Heat Pump |
| Sound Level | : | 76 dBA |
| Suction Line Size | : | 5/8 in |
| Tonnage | : | 3 |
| Tonnage | : | 3.0 Ton |
| Volts | : | 208/230 V |
Year-round comfort. Our AccuComfort™ Platinum 18 Variable Speed Heat Pump comes with AccuComfort™ technology that allows the variable-speed system to consistently adjust to run at a more efficient speed to maintain your personal level of comfort. Plus, with up to 18 SEER2 and 8.5 HSPF2, this multi-stage heat pump will keep you and your family comfortable all year round.
American Standard 5A6V8X36A1000A,Platinum 18, 3T, 18 SEER2, 36,000 BTU, 208/230V, R454B, 8.1 HSPF, Variable Speed Heat Pump
- 18 SEER2 heat pumps meet 2025 Low Global Warming Potential (Low GWP) regulatory criteria using R-454B refrigerant
- Zoning capability with American Standard Link™ enabled indoor units.
- Compatibility with existing accessories and kits
- Bluetooth connectivity to the American Standard Tech App for installation and diagnostics
- New refrigeration designs that are optimized for maximum performance using the new refrigerant
- Inverter driven compressor with variable output capacities. Noise enclosure minimizes sound levels. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor
