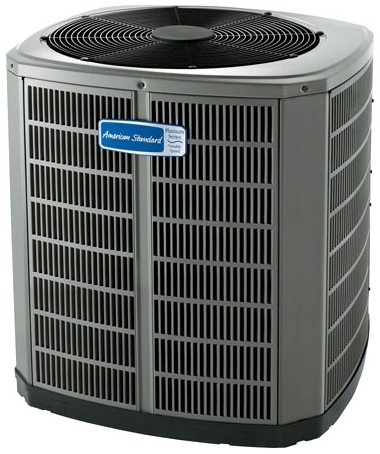

American Standard 4A7V8060A1000B Platinum Series 5T 18 SEER Variable Speed Air Conditioner
American Standard 4A7V8060A1000B Platinum Series 5T 18 SEER Variable Speed Air Conditioner
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385244
MPN: 4A7V8060A1000B
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AHRI Model Number | : | 4A7V8060A1 |
| BTU Rating | : | 60,000 Btu/hr |
| Communicating | : | Communicating |
| EER Rating | : | 12.75 |
| EER | : | 12.75 |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| Frequency (Hz) | : | 60 Hz |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 1-1/8 |
| MCA | : | 27 |
| Max Amps | : | 50.0 |
| Max Fuse | : | 40 amps |
| Model | : | 4A7V |
| Nominal Capacity BTU Rating | : | 60,000 |
| Nominal Capacity | : | 5.0 tons |
| Number of Stages | : | Variable Speed |
| Phase | : | 1.0 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 18 |
| SEER | : | 18 |
| Series | : | Platinum |
| Sound Level | : | 75 dBA |
| Sound Rating (dB) | : | 62 Cooling, 75 Heating |
| Stages | : | Variable |
| Table | : | SC-1-B |
| Tier | : | Platinum 18 |
| Tonnage | : | 5.0 Ton |
| Uncrated Dimensions (HxWxD) | : | 45.1 x 34.3 x 37.3 in |
| Voltage | : | 208/230 V |
American Standard Platinum Series - 4A7V8060A1000B, 5T, 18 SEER, 60,000 BTU, 208/230V, R410A, Variable Speed Air Conditioner Unit
- Internal high / low pressure & temperature protection
- Compressor sound enclosure
- DuraBase™ base, fast complete drain, weatherproof
- Glossy corrosion resistant finish
- Liquid line filter drier - factory installed or factory supplied for field install
