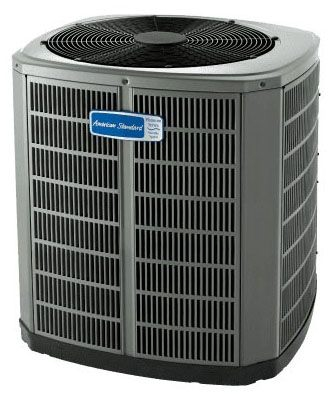

American Standard® 4A7A4060N1000B Air Conditioner Condenser, 5 Tons Nominal Capacity, 14 SEER, R-410A, 1, 208/230 V, Sweat/Braze, Scroll
American Standard® 4A7A4060N1000B Air Conditioner Condenser, 5 Tons Nominal Capacity, 14 SEER, R-410A, 1, 208/230 V, Sweat/Braze, Scroll
| Amperage Rating | : | 0.97 A (FLA, Fan Motor), 26.3 A (RLA, Compressor), 34 A (MCA) |
| BTU Rating | : | 60,000 Btu/hr |
| Base Size | : | 34-1/4" x 37-1/4" |
| CFM Rating | : | 5,230 CFM |
| Compressor Type | : | Scroll |
| Connection Type | : | Sweat/Braze |
| Cooling Capacity | : | 60,000 BTU/hr |
| Dimensions | : | 45-1/8" H x 34-1/4" W x 37-1/4" D |
| Drive Type | : | Direct Drive |
| EER Rating | : | 12.2 EER |
| Face Area | : | 30.8 sq ft |
| Finish | : | Appliance Finish, SermaGuard™ Coated (Screws) |
| Fins per Inch | : | 24 FPI |
| Flow Rate | : | 5,230 CFM |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 1/5 HP |
| Liquid Line Size | : | 3/8 " |
| Material | : | Steel (Louvered Panels) |
| Max Amps | : | 50.0 |
| Model | : | 4A7A4060N1000B |
| Nominal Capacity | : | 5 Tons |
| Number of Stages | : | Single Stage |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 850 RPM |
| SEER Rating | : | 14 SEER |
| SEER2 Range | : | 14 |
| SEER2 Rating | : | 13.8 |
| Series | : | Silver 14 |
| Sound Level | : | 72 dBA |
| Suction Line Size | : | 1-1/8 " |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |
| Voltage | : | 208/230 V |
An unbeatable combination of value and reliability, Silver Series air conditioners feature Spine Finâ„¢ coils and Durationâ„¢ single-stage compressors, providing powerful cooling with the reliability you expect from American Standard.
Mars Air Conditioner Condenser, Model: Silver 14, 5 Tons Nominal Capacity, 14 SEER, R-410A, 1, 208/230 V, Sweat/Braze, Scroll, 60,000 BTU/hr, 12.2 EER, 5,230 CFM, 72 dBA, 1/5 HP, Steel (Louvered Panels), Direct Drive, 45-1/8" H x 34-1/4" W x 37-1/4" D Dimensions, 34-1/4" x 37-1/4" Base Size, 1 Stage, 3/8" Liquid Line Size, 1-1/8" Suction Line Size, 30.8 Sq Ft Face Area, 850 RPM, 24 FPI, 0.97 A (FLA, Fan Motor), 26.3 A (RLA, Compressor), 34 A (MCA), 50 A Fuse Rating, 60 Hz
- Delivers reliable cooling performance with a 14 SEER efficiency rating.
- Features a robust Durationâ„¢ single-stage scroll compressor for consistent operation.
- Utilizes an efficient Spine Finâ„¢ coil for effective heat transfer.
- Constructed with heavy-duty steel louvered panels and a Durabaseâ„¢ basepan for durability.
- Operates quietly with a sound rating of 72 dBA.
- Uses environmentally friendlier R-410A refrigerant.
- UL 1995 Listed for safety assurance.
