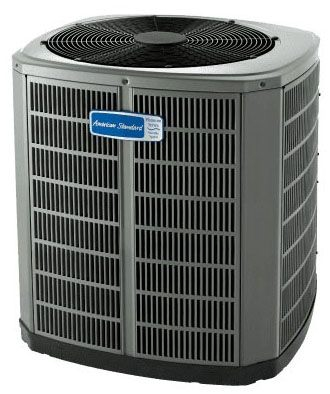

American Standrad 4A7A3048N1000A Silver Series 4T 13 SEER Single Stage Air Conditioner
American Standrad 4A7A3048N1000A Silver Series 4T 13 SEER Single Stage Air Conditioner
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385209
MPN: 4A7A3048N1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | 5.2 lb Refrigerant Charge |
| BTU Rating | : | 48,000 Btu/hr |
| Compressor Type | : | Duration™ Scroll |
| Dimensions | : | 37-1/4 in H x 34-1/4 in W x 29-1/8 in D |
| EER Rating | : | 11.7 |
| Finish | : | Powder-Painted |
| Frequency Rating | : | 60.0 Hz |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Max Amps | : | 40.0 |
| Model | : | 4A7A |
| Nominal Capacity | : | 4.0 tons |
| Number of Stages | : | Single Stage |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 13 |
| SEER2 Rating | : | 13.4 |
| Series | : | Silver 13 |
| Sound Level | : | 71 dBA |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage | : | 208/230 V |
Silver series air conditioners from American Standard® keep your home cool by pairing hardworking, single stage duration compressors with the same spine fin coils found in the Platinum and Gold models. Designed for zero-lot-line applications and other tight spaces, the Silver 16 low profile air conditioner keeps your family comfortable no matter your space constraints.
American Standrad Silver 13 - 4A7A3048N1000A, 4T, 13 SEER , 13.4 SEER2, 48,000 BTU, 208/230V, R410, Single Stage Air Conditioner
- Heavy-Duty Steel Louvered Panels -Protect the coil from dirt and damage while providing substantial airflow.
- Durabase Basepan - Built to resist cracks, rust and corrosion.
- SermaGuard Rust-Resistant Screws - Zinc-coated for corrosion resistance and longer life.
- All-aluminum Spine Fin coil - An exclusive design makes it extremely efficient at transferring heat and highly resistant to corrosion
- Compressor Sound Insulator - Reduces operating noise for a quieter home environment.
- Appliance-Grade Finish - Durable powder-painted louvers resist rust and corrosion, eliminate sharp edges and provide years of lasting protection.
