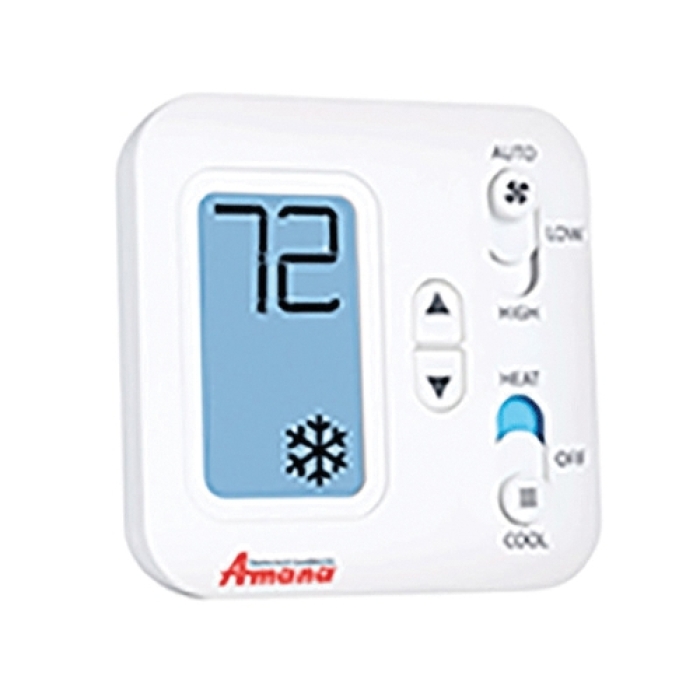

Amana® PHWT-A200 Programmable Thermostat, 18 to 30 V, 2H/2C-Stage, Hardwired, Auto Changeover: Yes, 2-Fan Speeds
Amana® PHWT-A200 Programmable Thermostat, 18 to 30 V, 2H/2C-Stage, Hardwired, Auto Changeover: Yes, 2-Fan Speeds

Amana® PHWT-A200 Programmable Thermostat, 18 to 30 V, 2H/2C-Stage, Hardwired, Auto Changeover: Yes, 2-Fan Speeds

Amana® PHWT-A200 Programmable Thermostat, 18 to 30 V, 2H/2C-Stage, Hardwired, Auto Changeover: Yes, 2-Fan Speeds

Manufacturer: Daikin Comfort Technologies
Brand: Amana®
Part #: 388635
MPN: PHWT-A200
Customer Part #:
Min. Order Qty: 1
Login for Availability
Accuracy      :      +/-1 deg F
Amperage Rating      :      3.0 A
Auto Changeover      :      Yes
Differential Temperature      :      +/-0.25 deg F, +/-0.5 deg F, +/-1 deg F, +/-2.25 deg F deg F
Display Type      :      Backlight
Height      :      4.53 in
Number of Fan Speeds      :      2
Number of Stages      :      2H/2C
Power Source      :      Hardwired
Terminal Designations      :      R, C, W1/O/B, Y1, W2, Y2, G, S1, S2
Voltage Rating      :      18 to 30 V
Width      :      4.53 in

Amana® Programmable Thermostat, 18 to 30 V, 2H/2C Stages, Hardwired Power Source, Auto Changeover: Yes, Backlight Display, 2 Fan Speeds, +/-0.25 deg F, +/-0.5 deg F, +/-1 deg F, +/-2.25 deg F Differential Temperature, +/-1 deg F Accuracy, 3 A, R, C, W1/O/B, Y1, W2, Y2, G, S1, S2 Terminal Designations, 4.53 in Height, 4.53 in Width, For Use With: Cooling/Conventional and Heat Pump PTAC Units, Thermostat Function Type

  • A variety of wired thermostats may be used with the Amana brand PTAC.
  • All thermostats offered can be connected to the PTAC through a low-voltage connection.
  • The Amana brand DigiSmart™ PTAC also offers a wireless remote thermostat.
  • Any thermostats other than those listed below or the DigiSmart thermostat must be submitted to Goodman for approval prior to use.
