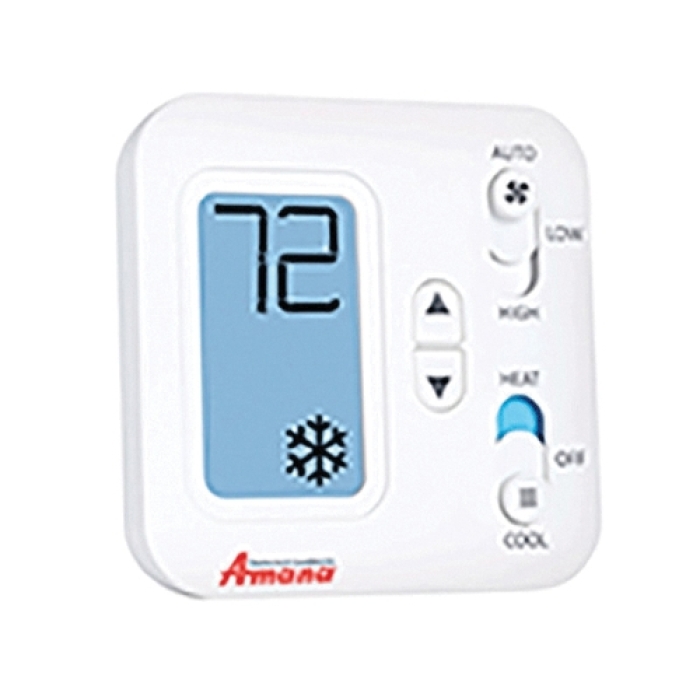

Amana® PHWT-A150H Non-Programmable Thermostat, 19 to 30 V, 1H/1C, 2H/1C-Stage, Auto Changeover: Yes, 2 -Fan Speeds
Amana® PHWT-A150H Non-Programmable Thermostat, 19 to 30 V, 1H/1C, 2H/1C-Stage, Auto Changeover: Yes, 2 -Fan Speeds

Amana® PHWT-A150H Non-Programmable Thermostat, 19 to 30 V, 1H/1C, 2H/1C-Stage, Auto Changeover: Yes, 2 -Fan Speeds

Amana® PHWT-A150H Non-Programmable Thermostat, 19 to 30 V, 1H/1C, 2H/1C-Stage, Auto Changeover: Yes, 2 -Fan Speeds

Manufacturer: Daikin Comfort Technologies
Brand: Amana®
Part #: 388634
MPN: PHWT-A150H
Customer Part #:
Min. Order Qty: 1
Login for Availability
Accuracy      :      +/-1 deg F
Amperage Rating      :      3 A
Auto Changeover      :      Yes
Differential Temperature      :      +/-0.25 deg F, +/-0.50 deg F, +/-1.00 deg F, +/-2.25 deg F
Display Type      :      Backlight LCD
Height      :      4.53 in
Number of Fan Speeds      :      2
Number of Stages      :      1H/1C, 2H/1C
Terminal Designations      :      C, GL, GH, W2, W1, Y, R, B/O
Voltage Rating      :      19 to 30 V
Width      :      4.53 in

A variety of wired thermostats may be used with the Amana brand PTAC.

Amana® Non-Programmable Thermostat, 19 to 30 V, 1H/1C, 2H/1C Stages, Auto Changeover: Yes, 2 Fan Speeds, Backlight LCD Display, +/-0.25 deg F, +/-0.50 deg F, +/-1.00 deg F, +/-2.25 deg F Differential Temperature, +/-1 deg F Accuracy, 3 A, C, GL, GH, W2, W1, Y, R, B/O Terminal Designations, 4.53 in Height, 4.53 in Width

  • All thermostats offered can be connected to the PTAC through a low-voltage connection.
  • The Amana brand DigiSmart™ PTAC also offers a wireless remote thermostat.
  • Any thermostats other than those listed below or the DigiSmart thermostat must be submitted to Goodman for approval prior to use.
