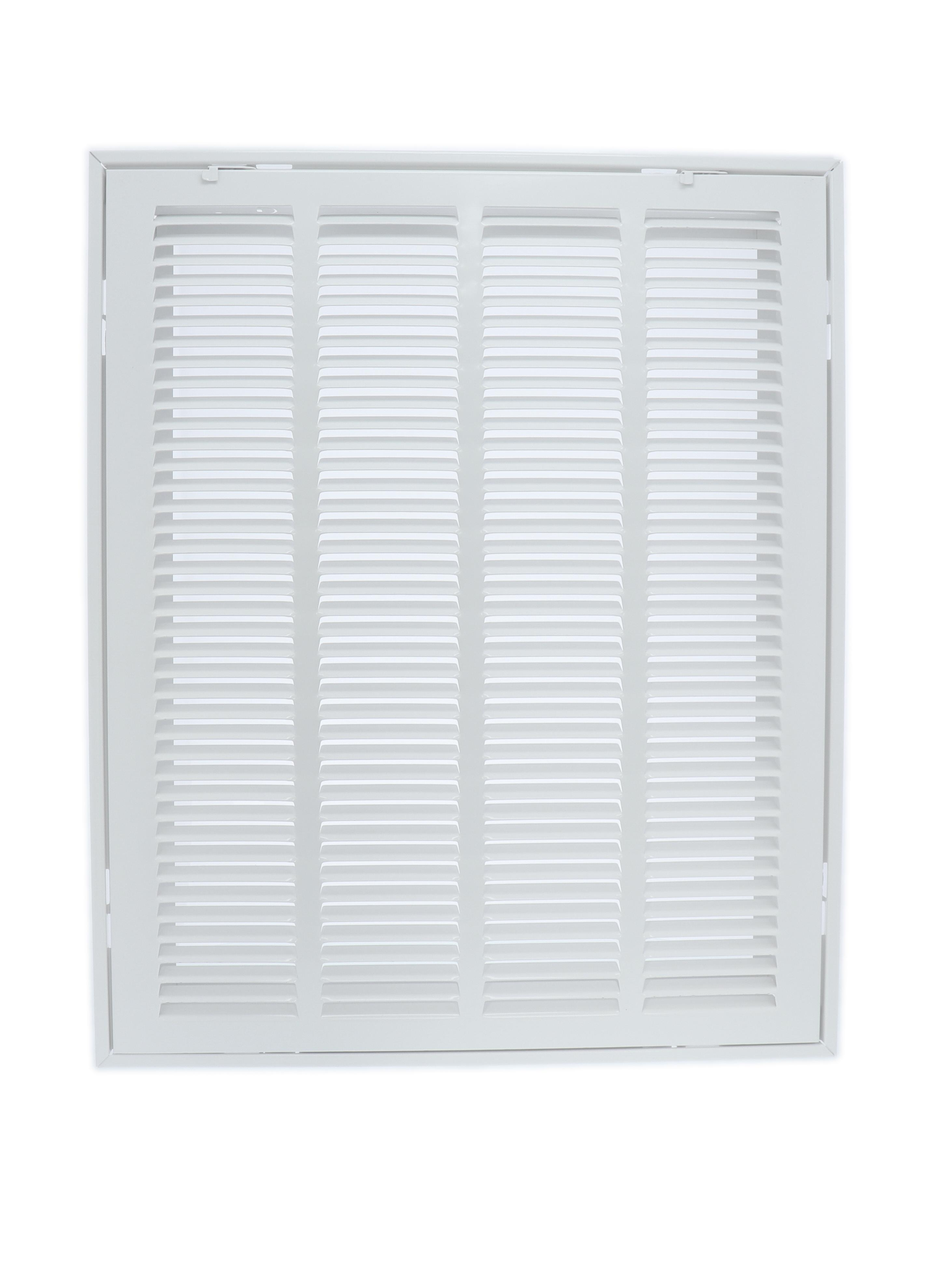

Duravent 170FF 01152424CW Return Air Filter Grille, 24" L x 24" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, 1/2" Grille Spacing, 1,032 CFM (At 400 FPM Face Velocity)
Duravent 170FF 01152424CW Return Air Filter Grille, 24" L x 24" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, 1/2" Grille Spacing, 1,032 CFM (At 400 FPM Face Velocity)
| Additional Information | : | 1 in Filter Size |
| Base Size | : | 23-15/16" L x 23-15/16" W |
| CFM Rating | : | 1,032 CFM (At 400 FPM Face Velocity) |
| Color | : | White |
| Deflection Type | : | 40°, Fixed |
| Domestic/Import | : | Domestic |
| Duct Size | : | 24" L x 24" W |
| Finish | : | White Enamel |
| Grille Spacing | : | 1/2 " |
| Height | : | 1-5/8 " |
| Length | : | 24 " |
| Material | : | Steel |
| Mounting Type | : | Flush Mount |
| Pitch | : | 1/2", 40 degrees |
| Series | : | 170FF |
| Size | : | 1-5/8" H x 24" L x 24" W |
| Width | : | 24 " |
The 170FF Series Return Air Filter Grille is designed for residential return air applications. Constructed from durable steel with a white enamel finish, it features a lanced face with 1/2-inch fin spacing set at a 40-degree deflection to effectively conceal the filter.This grille uses standard 1-inch thick disposable filters (sold separately) and includes adjustable filter retainers. The face is hinged and removable with concealed latches, allowing for easy filter replacement and cleaning. Its flush-mount design and wide margin contribute to a clean installation.
Duravent Return Air Filter Grille, Model: 170FF, 24" L x 24" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, 1/2" Grille Spacing, 1,032 CFM (At 400 FPM Face Velocity), 1-5/8" Height, Domestic
- Durable all-steel construction with a white enamel finish.
- Features 1/2-inch fin spacing set at a 40-degree angle.
- Designed for use with standard 1-inch thick disposable filters (not included).
- Removable hinged face with concealed latches provides easy access for filter changes and cleaning.
- Equipped with adjustable filter retainers.
- Flush-mount design for a clean, integrated appearance.
- Made in the USA.
