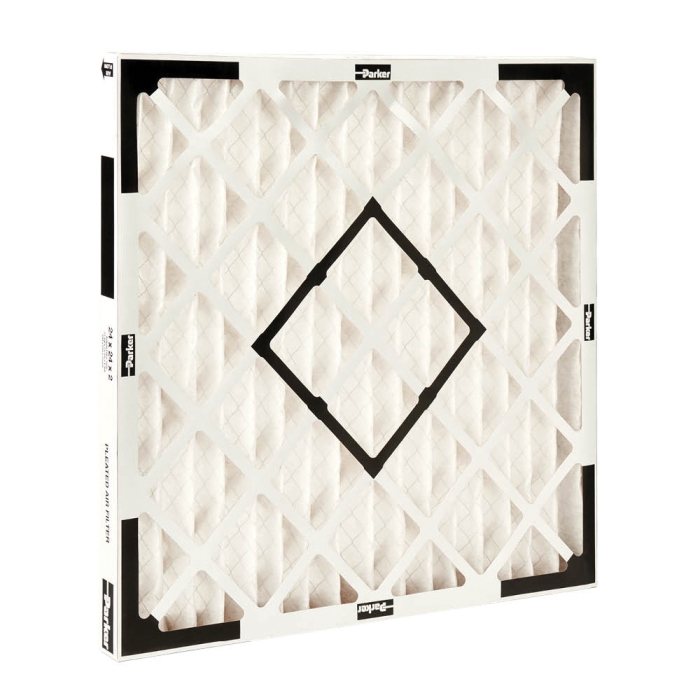

Airguard® DP® 0450185 Standard Capacity Air Filter, Die-Cut Panel, Pleated Filter, 8 MERV, 18 in Length, 25 in Width
Airguard® DP® 0450185 Standard Capacity Air Filter, Die-Cut Panel, Pleated Filter, 8 MERV, 18 in Length, 25 in Width
| CFM Airflow | : | 935 cfm |
| Color | : | White |
| Disposable | : | Yes |
| Filter Material | : | Synthetic |
| Filter Type | : | Die-Cut Panel, Pleated |
| Final Resistance | : | 1 in-WG |
| Frame Material | : | Beverage Board |
| Function Type | : | Filter |
| Initial Resistance | : | 0.17 in-WG |
| Length | : | 18 in |
| MERV | : | 8 |
| Micron Rating | : | 3 to 10 um |
| Product Family | : | DP® |
| Thickness | : | 1 in |
| Width | : | 25 in |
DP® standard-capacity extended surface, pleated air filters with Airguard® technology are suitable for use in virtually any air handling system, including filter banks, central station air handlers, rooftop units, side access housings, as final filters for systems with MERV 10 or MERV-A 8-A requirements or pre-filters in multi-stage systems. The filters are manufactured using sophisticated production control techniques to ensure consistent pleat count, height, shape, and spacing, which contributes to better performance and longer service life. Predetermined pleat centers allow dirt to collect evenly over the entire surface of the media, resulting in a slow, steady rise in resistance to ensure maximum dust-holding capacity. The two-piece frame with double-wall thickness around the outer edge provides rigidity. This coupled with a die-cut pattern with 50% more contact points between the media pack and the frame, gives DP® standard-capacity filters superior durability for use in demanding environments, where harsh conditions often cause alternative filter products to fail prematurely. All DP® standard-capacity filters exceed ASHRAE Standard 52.2 air cleaning specifications for filters installed upstream of cooling coils. Filters may be installed with the pleats either vertical (preferred) or horizontal.
Airguard® Standard Capacity Air Filter, Die-Cut Panel, Pleated Filter, 8 MERV, 18 in Length, 25 in Width, 1 in Thickness, Synthetic Filter, 935 cfm, 0.17 in-WG Initial Resistance, 1 in-WG Final Resistance, 3 to 10 um Micron Rating, Disposable: Yes, Beverage Board Frame, Product Family: DP®, Filter Function Type, White
- Exceeds American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) Standard 52.2 air cleaning specifications for filters installed upstream of cooling coils
- 100% thermally bonded synthetic, proprietary media resists moisture, delaminating, excessive buckling, collapsing, warping, and bending
- Low initial resistance facilitates efficiency and energy savings
- Resistant to mold and microbial growth
- Performs to MERV 10 and MERV-A 8-A before and after a conditioning step
- Filtration efficiency: MERV 10, MERV-A 8-A
- Nominal thickness (in.): 1, 2, 4
- Rated air velocity (fpm): 300-625
- Initial resistances (in.w.g.): 0.17-0.25
- Final resistance (in.w.g.): 1.0
- Maximum operating temperatures: 225 deg F (107 deg C)
- Material of construction: moisture-resistant beverage board frame; rust-resistant, expanded metal support grid made of galvanized steel
- Classified per UL Standard 900 for flammability
