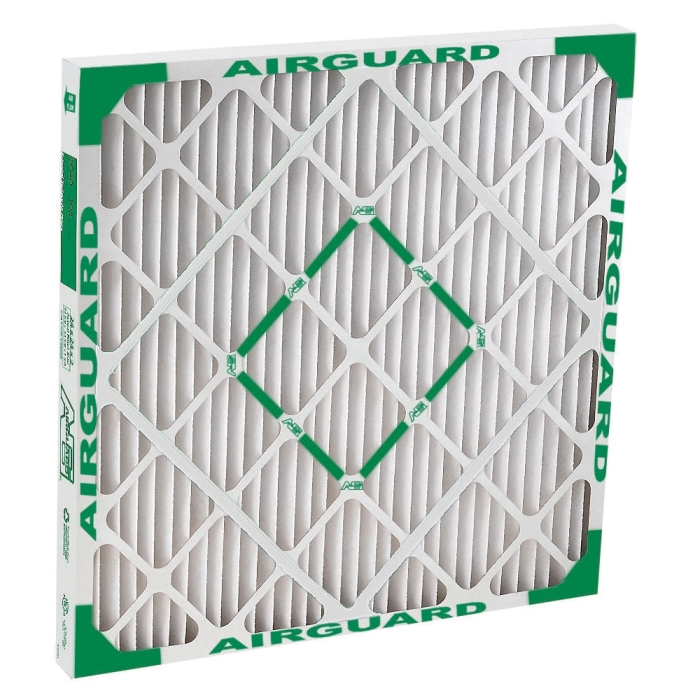

Airguard® DP® 0445200124 Standard Capacity Filter, Pleated Filter, 8 MERV, 20 in Length, 35 in Width, 2 in Thickness
Airguard® DP® 0445200124 Standard Capacity Filter, Pleated Filter, 8 MERV, 20 in Length, 35 in Width, 2 in Thickness
Manufacturer: PARKER HANNIFIN CORP
Brand: Airguard®
Part #: 384989
MPN: 0445200124
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Color | : | White |
| Filter Material | : | Synthetic |
| Filter Type | : | Pleated |
| Final Resistance | : | 1 in-WG |
| Function Type | : | Filter |
| Length | : | 20 in |
| MERV | : | 8 |
| Product Family | : | DP® |
| Thickness | : | 2 in |
| Width | : | 35 in |
DP® Max extended surface, pleated air filters with Airguard® technology are suitable use in virtually any air handling system, including filter banks, central station air handlers, rooftop units, side access housings, as final filters for systems with MERV 8 or MERV-A 8-A requirements or pre-filters in multi-stage systems. The filters are manufactured using sophisticated production control techniques to ensure consistent pleat count, height, shape, and spacing, which contributes to better performance and longer service life. Predetermined pleat centers allow dirt to collect evenly over the entire surface of the media, resulting in a slow, steady rise in resistance to ensure maximum dust-holding capacity. The two-piece frame with double-wall thickness around the outer edge provides rigidity. This coupled with a die-cut pattern with 50% more contact points between the media pack and the frame, gives DP® Max filters superior durability for use in demanding environments, where harsh conditions often cause alternative filter products to fail prematurely. All DP® Max filters exceed ASHRAE Standard 52.2 air cleaning specifications for filters installed upstream of cooling coils. Filters may be installed with the pleats either vertical (preferred) or horizontal.
Airguard® Standard Capacity Filter, Pleated Filter, 8 MERV, 20 in Length, 35 in Width, 2 in Thickness, Synthetic Filter, 1 in-WG Final Resistance, Product Family: DP®, Filter Function Type, White
- Exceeds American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) Standard 52.2 air cleaning specifications for filters installed upstream of cooling coils
- 100% thermally bonded synthetic, proprietary media resists moisture, delaminating, excessive buckling, collapsing, warping, and bending
- Low initial resistance facilitates efficiency and energy savings
- Resistant to mold and microbial growth
- Performs to MERV 8 and MERV-A 8-A mechanical efficiency before and after a conditioning step
- Filtration efficiency: MERV 8, MERV-A 8-A
- Nominal thickness (in.): 1, 2, 4, 6
- Maximum operating temperatures: 225 deg F (107 deg C)
- Material of construction: Heavy-duty, moisture-resistant beverage board frame; rust-resistant, expanded metal support grid made of galvanized steel
- Classified per UL Standard 900 for flammability
