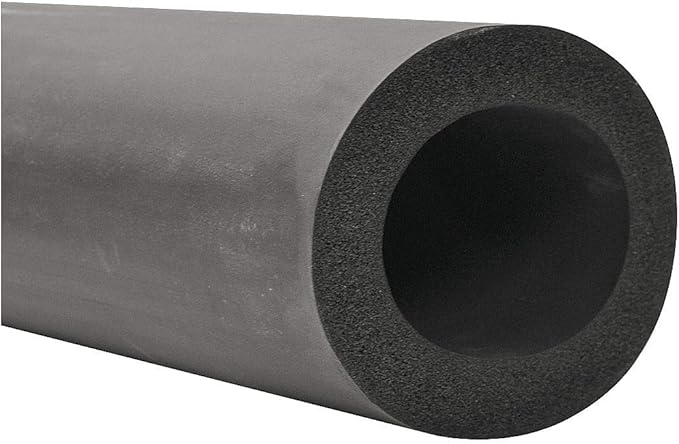

Aeroflex Aerocel AC 410-AC11834 Elastomeric Pipe Insulation, 1-1/8" Inside Diameter, 3/4" Wall Thickness, 72" Length, For 3/4" (IPS), 1" (Copper) Pipe, 5 R-Value, -297-257 °F, Unslit
Aeroflex Aerocel AC 410-AC11834 Elastomeric Pipe Insulation, 1-1/8" Inside Diameter, 3/4" Wall Thickness, 72" Length, For 3/4" (IPS), 1" (Copper) Pipe, 5 R-Value, -297-257 °F, Unslit
| Color | : | Black |
| Connection Type | : | Unslit |
| Construction | : | Closed Cell, Flexible |
| Domestic/Import | : | Domestic |
| Facing Type | : | Unfaced |
| For Pipe Size | : | 3/4" (IPS), 1" (Copper) |
| For Pipe Type | : | Copper, Iron Pipe, Stainless Steel |
| Inside Diameter | : | 1-1/8 " |
| Length | : | 72 " |
| Material | : | EPDM |
| Model | : | 410-AC11834 |
| Nominal Size | : | 3/4" (IPS), 1" (Copper) |
| Outside Diameter | : | 2-5/8 " |
| R-Value | : | 5 |
| Series | : | Aerocel AC |
| Style | : | Unslit Tube |
| Temperature Rating | : | -297-257 °F |
| Thermal Conductivity | : | 0.245 BTU·in/h·ft²·°F (At 75°F) |
| Thermal Resistance | : | R-5.0 |
| Wall Thickness | : | 3/4 " |

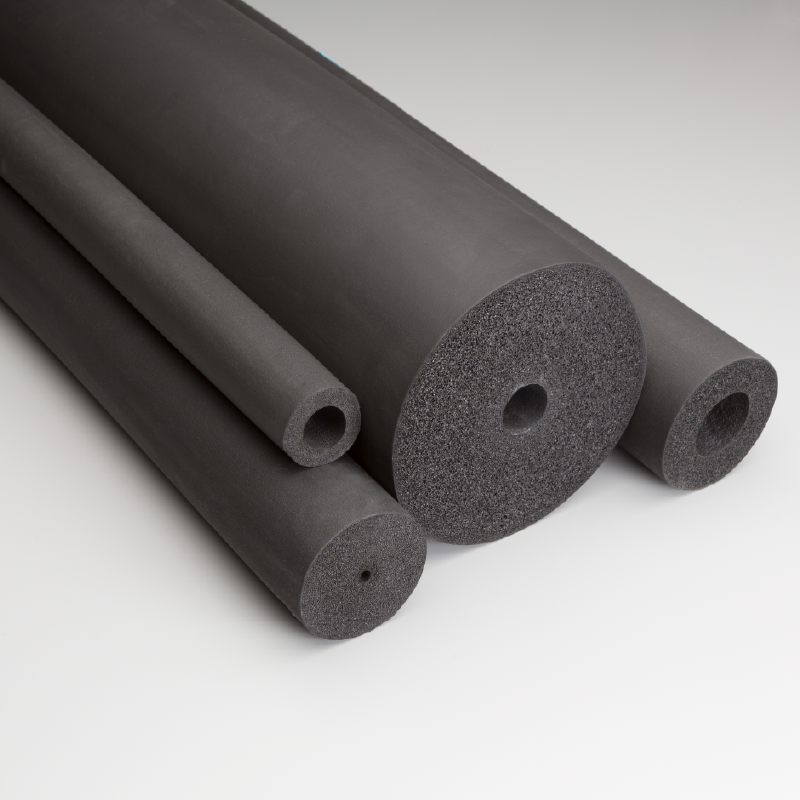

Closed-cell elastomeric foam pipe insulation easily slides over piping for new installations or can be slit to snap over piping in existing installations. The proprietary blend of non-polar EPDM rubber is key to consistent, long-lasting thermal performance and protection against moisture and environmental stresses. This product line offers a wide range of sizes and thicknesses to meet energy code and condensation control requirements.
Aeroflex Elastomeric Pipe Insulation, Model: Aerocel AC, 1-1/8" Inside Diameter, 3/4" Wall Thickness, 72" Length, For 3/4" (IPS), 1" (Copper) Pipe, 5 R-Value, -297-257 °F, Unslit, Unfaced, EPDM, For Copper, Iron Pipe, Stainless Steel Pipe, 0.245 BTU·in/h·ft²·°F (At 75°F), Closed Cell, Flexible Construction, 2-5/8" Outside Diameter, Black, Domestic
- Constructed from flexible, closed-cell EPDM rubber for durability and thermal efficiency.
- Naturally resistant to moisture, UV exposure, and ozone, suitable for many indoor and outdoor applications.
- Features low thermal conductivity (0.245 K-value) and water vapor permeability (0.03 perm-inch) to control condensation and energy loss.
- Rated for a wide service temperature range from -297°F to +257°F.
- Meets ASTM E84 25/50 flame and smoke rating through 2-inch thickness.
- GREENGUARD Gold Certified for low chemical emissions (VOCs).
- Unslit tube design allows for easy sliding onto new piping.
