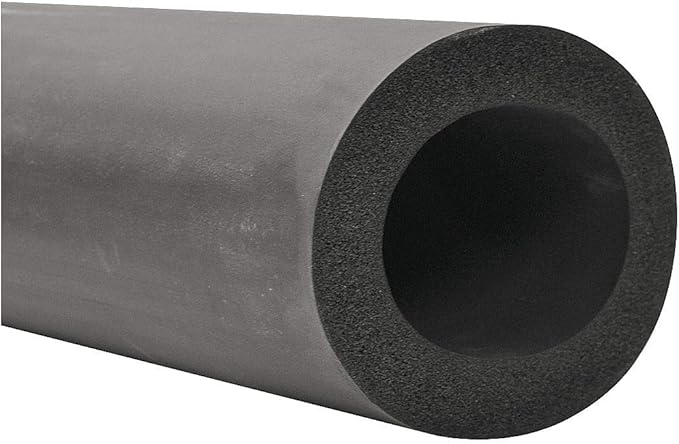

Aeroflex Aerocel AC 320-AC23812 Elastomeric Pipe Insulation, 2-3/8" Inside Diameter, 1/2" Wall Thickness, 72" Length, For 2" (IPS), 2-3/8" (Copper) Pipe, 2.04 R-Value, -297-257 °F, Unslit
Aeroflex Aerocel AC 320-AC23812 Elastomeric Pipe Insulation, 2-3/8" Inside Diameter, 1/2" Wall Thickness, 72" Length, For 2" (IPS), 2-3/8" (Copper) Pipe, 2.04 R-Value, -297-257 °F, Unslit
| Color | : | Black |
| Connection Type | : | Unslit |
| Construction | : | Closed Cell, Flexible |
| Domestic/Import | : | Domestic |
| Facing Type | : | Unfaced |
| For Pipe Size | : | 2" (IPS), 2-3/8" (Copper) |
| For Pipe Type | : | Copper, Iron Pipe, Stainless Steel |
| Inside Diameter | : | 2-3/8 " |
| Length | : | 72 " |
| Material | : | EPDM |
| Model | : | 320-AC23812 |
| Nominal Size | : | 2" (IPS) |
| Outside Diameter | : | 3 " |
| R-Value | : | 2.04 |
| Series | : | Aerocel AC |
| Style | : | Unslit Tube |
| Temperature Rating | : | -297-257 °F |
| Thermal Conductivity | : | 0.245 BTU·in/h·ft²·°F (At 75°F) |
| Thermal Resistance | : | R-2.04 |
| Wall Thickness | : | 1/2 " |
Aerocel® tube insulation features a flexible, closed-cell, lightweight EPDM-rubber based elastomeric construction designed for insulating warm or cold piping systems, including heating, cooling, refrigeration, and plumbing lines. This specific 6-foot tube has a 2-3/8 inch inside diameter and a 1/2 inch wall thickness, suitable for 2 inch IPS or 2-3/8 inch copper pipes.The closed-cell structure provides efficient thermal performance and helps protect against moisture and environmental stresses. The unslit design allows it to slide easily over pipes during new installations, contributing to lower installation costs.
Aeroflex Elastomeric Pipe Insulation, Model: Aerocel AC, 2-3/8" Inside Diameter, 1/2" Wall Thickness, 72" Length, For 2" (IPS), 2-3/8" (Copper) Pipe, 2.04 R-Value, -297-257 °F, Unslit, Unfaced, EPDM, For Copper, Iron Pipe, Stainless Steel Pipe, 0.245 BTU·in/h·ft²·°F (At 75°F), Closed Cell, Flexible Construction, 3" Outside Diameter, Black, Domestic
- Constructed from flexible, closed-cell EPDM rubber for effective thermal insulation.
- Resists moisture absorption and UV exposure for long-term performance.
- Suitable for a wide service temperature range from -297°F to +300°F.
- Meets UL 94 V-0, ASTM C 534, NFPA 90A/B requirements.
- Designed for 2" IPS and 2-3/8" copper pipe sizes.
- Unslit tube format allows for easy sliding installation on new piping.
