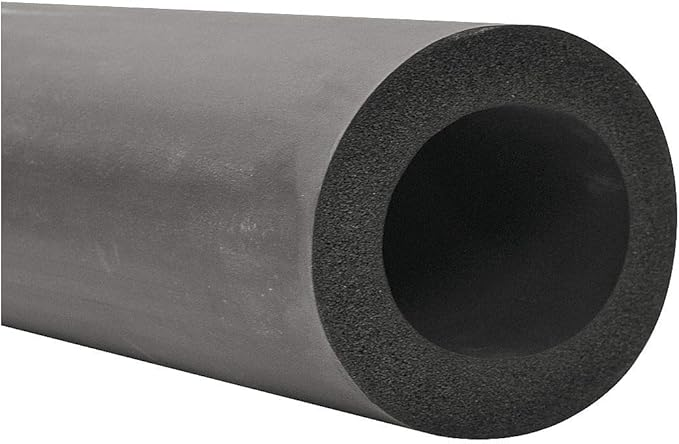

Aeroflex Aerocel AC 210-AC7838 Elastomeric Pipe Insulation, 7/8" Inside Diameter, 3/8" Wall Thickness, 72" Length, For 3/4" (Copper), 1/2" (IPS) Pipe, 1.53 R-Value, -297-257 °F, Unslit
Aeroflex Aerocel AC 210-AC7838 Elastomeric Pipe Insulation, 7/8" Inside Diameter, 3/8" Wall Thickness, 72" Length, For 3/4" (Copper), 1/2" (IPS) Pipe, 1.53 R-Value, -297-257 °F, Unslit
| Color | : | Black |
| Connection Type | : | Unslit |
| Construction | : | Closed Cell, Flexible |
| Domestic/Import | : | Domestic |
| Facing Type | : | Unfaced |
| For Pipe Size | : | 3/4" (Copper), 1/2" (IPS) |
| For Pipe Type | : | Copper, Iron Pipe, Stainless Steel |
| Inside Diameter | : | 7/8 " |
| Length | : | 72 " |
| Material | : | EPDM |
| Model | : | 210-AC7838 |
| Nominal Size | : | 3/4" (Copper) |
| Outside Diameter | : | 1-5/8 " |
| R-Value | : | 1.53 |
| Series | : | Aerocel AC |
| Style | : | Unslit Tube |
| Temperature Rating | : | -297-257 °F |
| Thermal Conductivity | : | 0.245 BTU·in/h·ft²·°F (At 75°F) |
| Thermal Resistance | : | R-1.53 |
| Wall Thickness | : | 3/8 " |

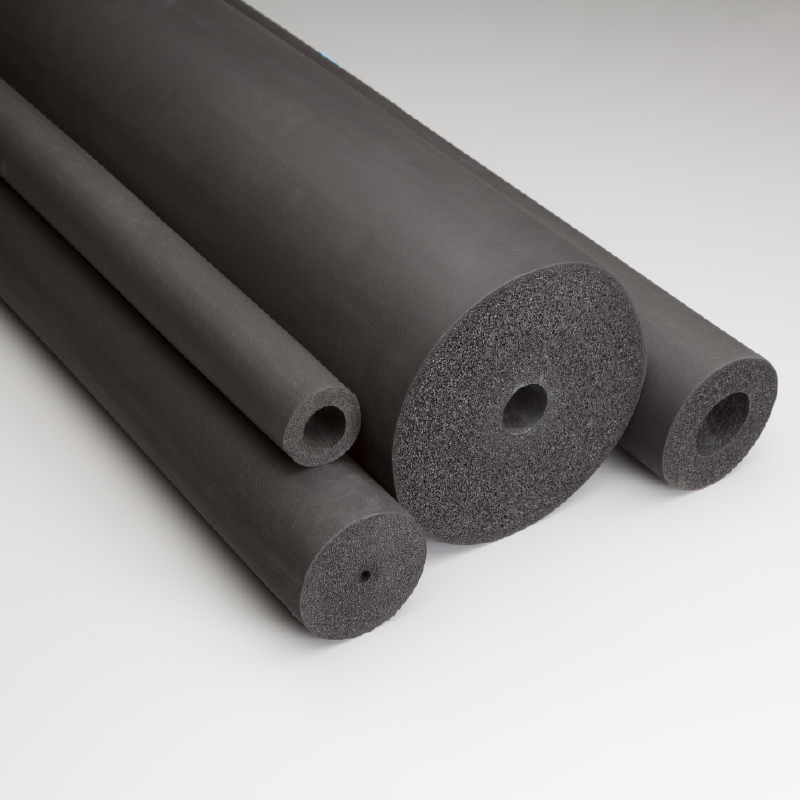

AEROCEL® Tube and Sheet Insulation is a highly flexible, closed-cell and lightweight EPDM-rubber based elastomeric product. Aerocel® Tube and Sheet Insulation is designed for insulating warm or cold piping, duct, or equipment. Aerocel® EPDM Elastomeric Tube and Sheet Insulation is supplied in 1/4", 3/8", 1/2", 3/4", 1", 1-1/4",1-1/2" 2", 2-1/2" and 3" thicknesses, in popular I.D. sizes up to 8" IPS, and as flat sheets and rolls. Please check for specific size combinations. The tightly formed, closed-cell structure of Aerocel® Pipe and Sheet Insulation makes it an efficient insulation, providing superior insulating capacity to many materials, including other elastomeric insulations.
Aeroflex Elastomeric Pipe Insulation, Model: Aerocel AC, 7/8" Inside Diameter, 3/8" Wall Thickness, 72" Length, For 3/4" (Copper), 1/2" (IPS) Pipe, 1.53 R-Value, -297-257 °F, Unslit, Unfaced, EPDM, For Copper, Iron Pipe, Stainless Steel Pipe, 0.245 BTU·in/h·ft²·°F (At 75°F), Closed Cell, Flexible Construction, Unslit Tube, 1-5/8" Outside Diameter, 3/4" (Copper) Nominal Size, Black, Domestic
- Made from flexible, closed-cell, lightweight EPDM rubber for efficient thermal insulation.
- Offers low thermal conductivity (0.245 K-value at 75°F) and excellent water vapor resistance (0.03 perm-in).
- Suitable for a wide continuous service temperature range from -297°F to +300°F.
- Inherently UV and moisture resistant, suitable for indoor, outdoor, and direct burial applications above the water table.
- Meets ASTM E84 25/50 flame spread and smoke developed ratings (up to 2" thickness).
- Non-corrosive formulation protects copper and stainless steel piping.
