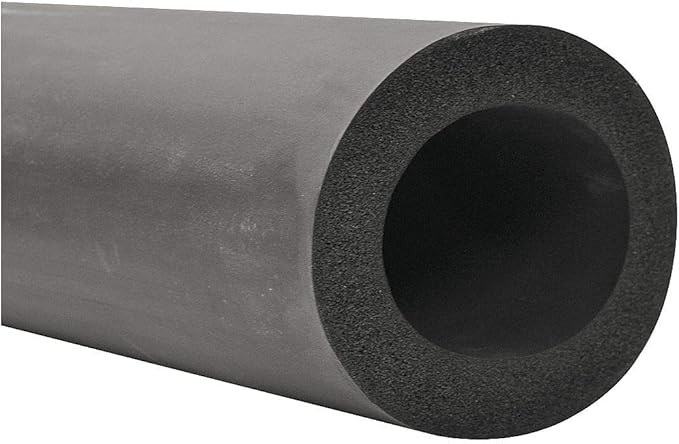

Aeroflex Aerocel AC 200-AC1438 Elastomeric Pipe Insulation, 1/4" Inside Diameter, 3/8" Wall Thickness, 72" Length, 3 R-Value, -297-257 °F, Unslit, Unfaced
Aeroflex Aerocel AC 200-AC1438 Elastomeric Pipe Insulation, 1/4" Inside Diameter, 3/8" Wall Thickness, 72" Length, 3 R-Value, -297-257 °F, Unslit, Unfaced
| Color | : | Black |
| Connection Type | : | Unslit |
| Construction | : | Closed Cell, Flexible |
| Domestic/Import | : | Domestic |
| Facing Type | : | Unfaced |
| For Pipe Size | : | 1/4" (OD Copper) |
| For Pipe Type | : | Copper, Iron Pipe, Stainless Steel |
| Inside Diameter | : | 1/4 " |
| Length | : | 72 " |
| Material | : | EPDM |
| Model | : | 200-AC1438 |
| Nominal Size | : | 1/4 " |
| Outside Diameter | : | 1 " |
| R-Value | : | 3 |
| Series | : | Aerocel AC |
| Style | : | Unslit Tube |
| Temperature Rating | : | -297-257 °F |
| Thermal Conductivity | : | 0.245 BTU·in/h·ft²·°F (At 75°F) |
| Thermal Resistance | : | R-3.0 |
| Wall Thickness | : | 3/8 " |

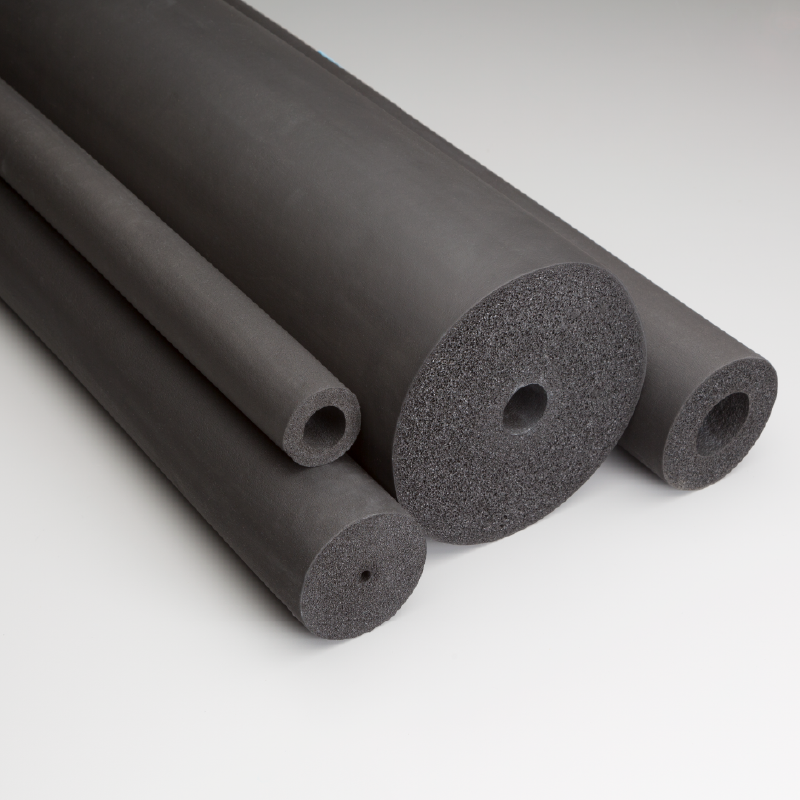

Aerocel® EPDM pipe insulation is a flexible, closed-cell, and lightweight elastomeric product designed for insulating warm or cold piping. This EPDM rubber-based insulation helps retard heat gain or loss and control condensation on cold-water plumbing, chilled water, and refrigeration lines. It's also suitable for reducing heat flow on hot water plumbing, liquid heating, and dual-temperature piping systems.The proprietary blend of non-polar EPDM rubber ensures consistent, long-lasting thermal performance and protection against moisture and environmental stresses. Its closed-cell structure makes it highly efficient, and it slides easily over new piping or can be slit to fit existing lines.
Aeroflex Elastomeric Pipe Insulation, Model: Aerocel AC, 1/4" Inside Diameter, 3/8" Wall Thickness, 72" Length, 3 R-Value, -297-257 °F, Unslit, Unfaced, EPDM, For Copper, Iron Pipe, Stainless Steel Pipe, 0.245 BTU·in/h·ft²·°F (At 75°F), Closed Cell, Flexible Construction, Unslit Tube, 1" Outside Diameter, Black, Domestic
- Made from flexible, closed-cell EPDM rubber for thermal efficiency and moisture resistance.
- Wide continuous service temperature range from -297°F to 257°F.
- Suitable for various HVAC, refrigeration, and plumbing applications, including copper piping.
- Naturally UV resistant and suitable for both interior and exterior use.
- Features low thermal conductivity (R-Value of 3.0) and a built-in vapor retarder.
- Meets ASTM E84 25/50 flame and smoke rating through 2" thickness.
- Non-corrosive on copper and stainless steel piping.
- GREENGUARD Gold Certified for low chemical emissions.
- Unslit tube design slides easily over new piping.
